How are utility trenches stratified by depth in your takeoffs?

Every linear run of pipe is stratified into OSHA-compliant depth increments: 0-6 feet (standard excavation), 6-10 feet (trench box or hydraulic shoring required), 10-14 feet (heavy stacked shields), and 14+ feet (deep benching, dewatering, and specialized heavy excavators). This prevents contractors from bidding deep, dangerous cuts at shallow flat-rate pricing.

What bedding and backfill materials are calculated for underground pipelines?

We calculate ASTM C33 concrete sand or #57 crushed stone pipe bedding (typically 4 to 6 inches beneath the invert), initial backfill to 12 inches above the pipe crown, and final trench backfill categorized into unpaved native backfill vs pavement section compacted structural fill.

How do you detect utility crossing conflicts between water and sewer mains?

During plan analysis, our estimators review civil profile sheets to verify Ten-State Standards and local municipal codes requiring a minimum of 18 inches of vertical clearance between water mains and sanitary sewer lines. Any vertical or horizontal crossing conflicts are flagged in our takeoff notes for RFI submission prior to bid closing.

What pipe materials and specifications are covered?

We quantify all commercial utility materials including Reinforced Concrete Pipe (RCP Class III/IV/V), High-Density Polyethylene (AASHTO M294 Dual-Wall HDPE), Polypropylene (PP), Polyvinyl Chloride (SDR-35, SDR-26, and AWWA C900/C905 PVC), and Ductile Iron Pipe (AWWA C151 Class 52/350 DIP).

Are utility structure depths and drops calculated individually?

Yes. Every precast manhole, catch basin, curb inlet, and junction box is logged with its unique casting rim elevation, all incoming/outgoing invert elevations, structure height (rim minus lowest invert), and internal drop connection height to ensure exact precast barrel pricing.

CSI Division 33 00 00 • Utilities

Underground Utility Estimating & Takeoff Services

Complete, itemized quantity takeoffs for US wet and dry utility contractors. We quantify exact pipe linear footage, precast structures, rim-to-invert depths, OSHA trench excavation volumes, crushed stone pipe bedding, and trench surface restoration.

Trench & Bedding Calculator

Complete Division 33 Scope Coverage

Storm Drainage: RCP, HDPE, PVC pipes, catch basins, headwalls
Sanitary Sewer: SDR-26/35 gravity mains, precast manholes, laterals
Water Systems: C900 PVC / Ductile Iron, valves, hydrants, services
Trench Stratification: 0-6', 6-10', 10-14', and 14'+ depth brackets
Bedding & Backfill: Crushed stone bedding tons & select fill CY

Direct Technical Summary: What Is an Underground Site Utility Takeoff?

An underground site utility takeoff is the comprehensive quantification of all subterranean infrastructure systems governed by CSI MasterFormat Division 33. This includes wet piping systems (sanitary sewer gravity lines, water distribution mains, and storm drainage networks) and dry conduits (electrical power and telecommunications duct banks). An engineering-grade takeoff segments piping by diameter, pipe class, and OSHA trench depth brackets (0-6', 6-10', 10-14', 14'+), while calculating structure heights (rim to lowest invert), bedding aggregates (ASTM C33 sand or #57 stone), and trench backfill volumes.

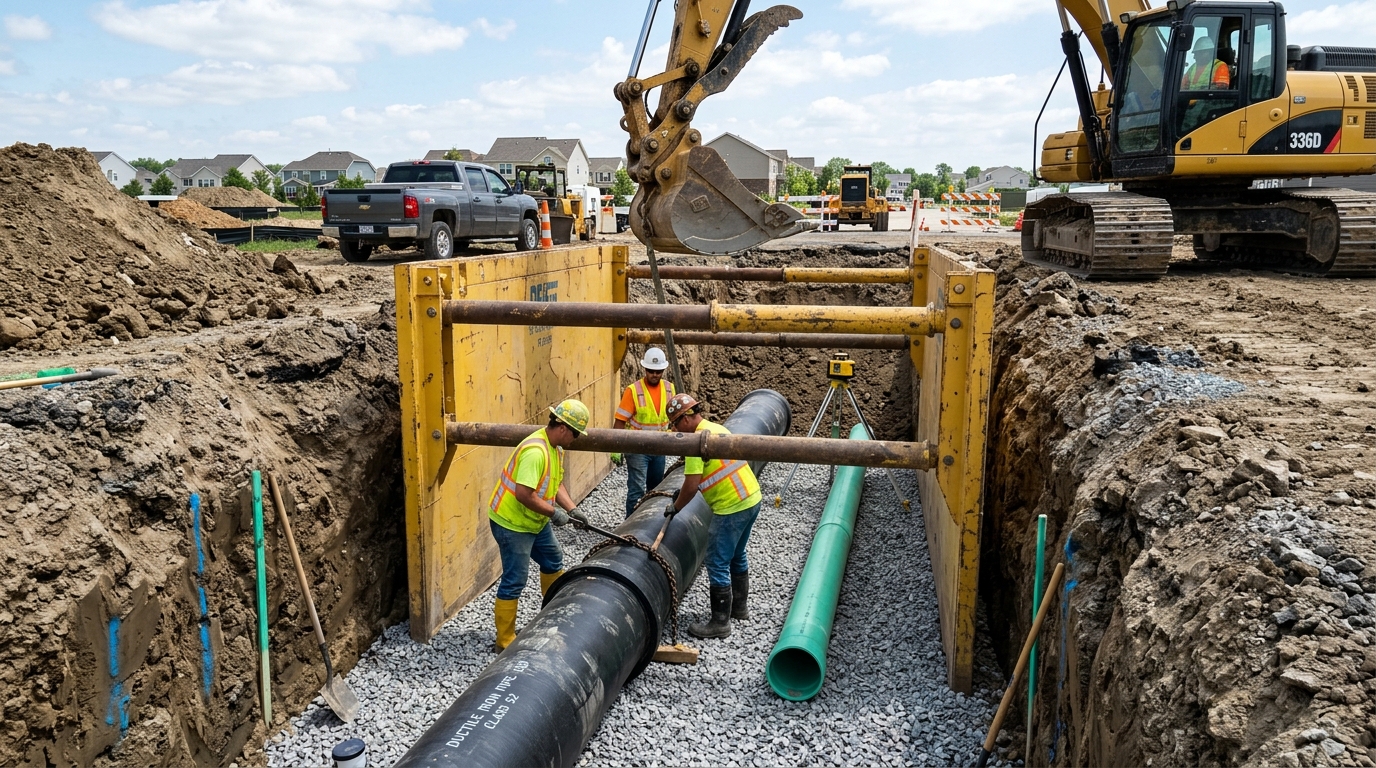

Open cut underground utility trench with steel trench box, ductile iron waterline, PVC sewer pipe on stone bedding with laser guide

Underground Wet Utilities Installation: Heavy Trench Shielding, Laser Alignment & Crushed Aggregate BeddingCSI DIVISION 33 • UTILITIES

The Critical Importance of Trench Depth Stratification

Installing a 24-inch storm pipe at a 4-foot invert depth is a fundamentally different operational and financial task than installing that same 24-inch pipe at 13 feet. At 4 feet deep, a single utility excavator can cycle quickly without trench boxes or speed shores. At 13 feet deep, OSHA 1926 Subpart P mandates steel trench safety shields, hydraulic shoring, or extensive 1.5:1 layback benching. The volume of excavated spoil quadruples, cycle times drop by 60%, and pipe bedding stone requirements escalate.

When estimators fail to stratify utility piping by depth, contractor bids are exposed to severe risk. Our takeoffs segment every foot of pipe into recognized production depth tiers:

SHALLOW (0' - 6')

Standard Open Cut

Rapid machine cycle times, minimum trench width, minimal shoring requirements depending on soil cohesion classification.

MEDIUM (6' - 10')

Shored Trenching

Mandatory OSHA trench shield boxes, increased trench width to accommodate spreader bars, double-handling of spoil.

DEEP (10' - 16'+)

Stacked Boxes & Dewatering

Stacked heavy steel boxes, crane or 80k-lb excavator placement, active dewatering pumps, and high-volume stone backfill.

Comprehensive Division 33 Systems Quantified

Our utility estimating team provides complete itemization across all wet and dry site infrastructure disciplines:

1. Water Distribution Utilities (CSI 33 10 00)

Potable water mains, fire protection loops, and irrigation supply lines. Quantified by material (AWWA C900 PVC DR-18/DR-14, Class 52/350 Ductile Iron Pipe), size (2" through 24"), MJ gate valves with valve boxes, tapping sleeves, fire hydrant assemblies with auxiliary gate valves, air release valves, megalug mechanical joint restraints, thrust blocks (CY), pressure testing (LF), and bacteriological chlorination flushing.

2. Sanitary Sewer Utilities (CSI 33 30 00)

Gravity sewer collectors, outfalls, and force mains. Quantified by material (ASTM D3034 SDR-35 / SDR-26 PVC, C900 PVC for shallow cover/crossings), 48", 60", and 72" precast concrete manholes with eccentric cones, flat tops, drop connections, doghouse manholes over live lines, sanitary service laterals with two-way cleanouts, air testing (LF), and mandrel deflection testing.

3. Storm Drainage Networks (CSI 33 40 00)

Conveyance piping (Reinforced Concrete Pipe Class III/IV/V, AASHTO M294 Dual-Wall HDPE, Polypropylene pipe), precast curb inlets (DOT Type A/C/E), grated drop inlets, yard drains, concrete junction boxes, precast headwalls, flared end sections (FES) with toe walls, and dumped riprap aprons (SY and tons) over geotextile filter fabric.

4. Dry Utility Encasement & Conduits (CSI 33 70 00 / 33 80 00)

Primary and secondary electrical power duct banks, telecommunications fiber optic conduits, gas main trenching, concrete encasement encasement (CY), spacer chairs, pull boxes, transformer pads, and light pole foundation trenching.

Trench Geometry & Bedding Formula Calculation

Accurately estimating trench dirt and stone requires calculating pipe displacement and bedding dimensions. Here is the mathematical framework our takeoffs follow:

Trench Dimensioning Formulas:

Trench Width (W) = Outside Pipe Diameter (Bc) + 2 × Working Clearance (typically 12" to 16" per side)
Trench Excavation Cut (CY) = [Width (ft) × Average Trench Depth (ft) × Length (ft)] ÷ 27
Bedding & Haunching Zone Stone (CY) = [Width (ft) × (Bedding Depth + Pipe Crown Cover) × Length (ft) ÷ 27] - Pipe Displacement (CY)
Bedding Stone (Tons) = Bedding Volume (CY) × Compaction Density (typically 1.35 to 1.45 Tons/CY)

Worked Example: 600 LF of 18" RCP (outside diameter 23") installed at an average invert depth of 8.5 ft with 6" bedding and 12" initial cover above crown.
• Trench Width = 23" + 24" = 47" = 3.92 ft.
• Gross Trench Cut = (3.92 ft × 8.5 ft × 600 ft) ÷ 27 = 740.4 BCY.
• Pipe Displacement = π × (0.96 ft)² × 600 ft ÷ 27 = 64.3 CY.
• Total Pipe Zone Stone = [(3.92 ft × (0.5' + 1.92' + 1.0') × 600 ft) ÷ 27] - 64.3 CY = 232.8 CY.
• Bedding Stone Tonnage = 232.8 CY × 1.4 Tons/CY = 325.9 Tons of #57 Stone.

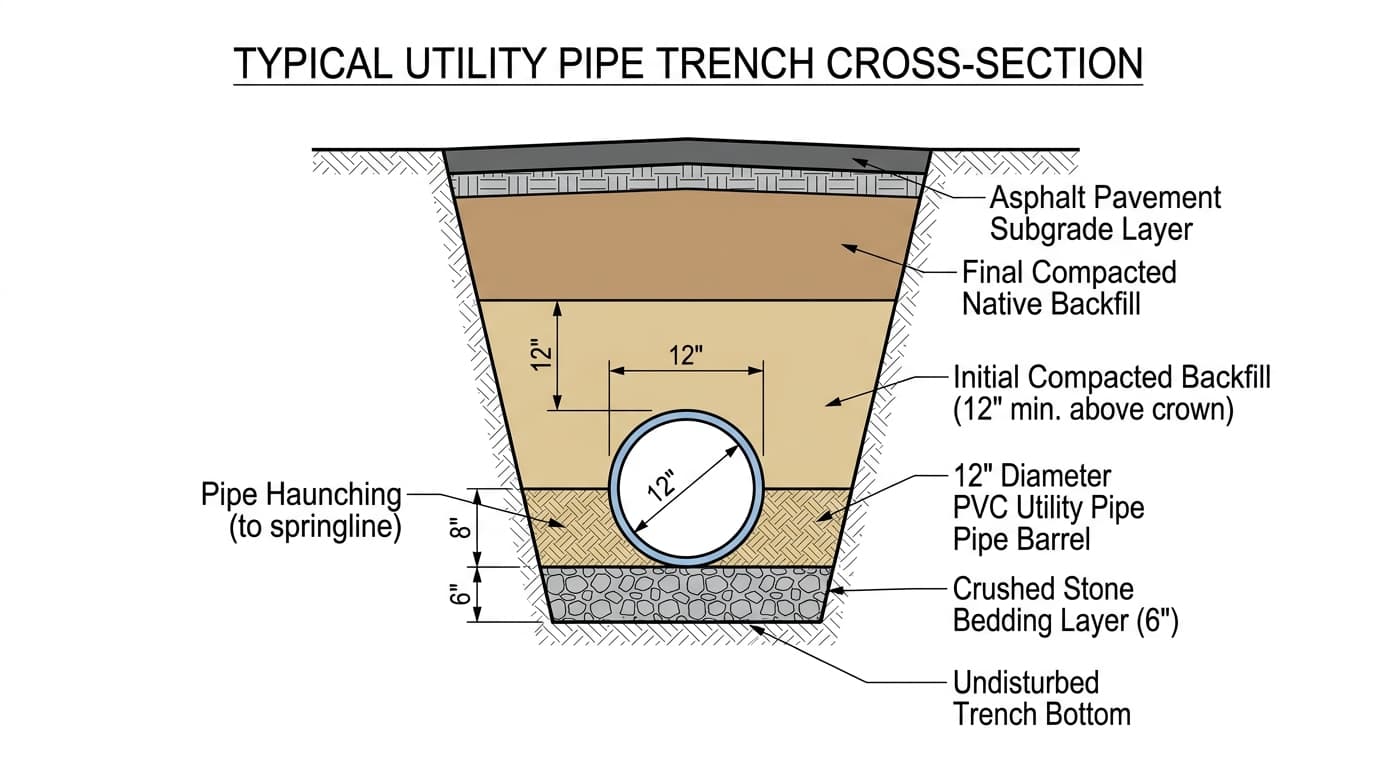

Typical civil engineering utility trench cross-section detail showing bedding layer, pipe haunching, initial backfill, and final native backfill

Engineering Cross-Section Detail: Standard Trench Stratification & Pipe Zone BackfillCSI 33 05 00 DETAIL

QA/QC Conflict Detection & Invert Auditing

Utility estimating errors lead directly to catastrophic back-charges on bid day. Our senior utility takeoff specialists execute a 4-point verification check before publishing final quantities:

Vertical Clearance Audit: We cross-reference sanitary sewer and water line profiles at every point of intersection. Municipal standards mandate a minimum of 18 inches vertical separation between water mains and sewer pipes. Any clearance under 18" is flagged for concrete encasement or ductile iron sleeve requirements.
Invert Slope & Self-Cleansing Velocity Check: We verify the designer's slope across all gravity pipe runs to verify minimum flow velocities (typically 2.0 ft/sec for sanitary sewer and 2.5 ft/sec for storm drainage). Inverts showing zero slope or backward grades are caught and highlighted for RFI clarification.
Structure Rim-to-Invert Calculation: Every precast structure is checked against finished grading contours to ensure rim elevations match proposed asphalt or curb grade, preventing buried lids or protruding casting hazards.
Pavement Subgrade vs Native Spoil Segregation: We calculate trench backfill within pavement sections separately from unpaved landscape areas. Pavement trenches require imported crushed aggregate or flowable fill, whereas unpaved runs permit recompacted native spoil.

What Is Included in Division 33 Deliverables

Itemized Pipe Schedules: Tabulated by utility system (Storm, Sanitary, Water, Conduit), material specification (RCP Class III/IV/V, HDPE Smooth Interior, SDR-35 PVC, C900 PVC, Class 350 DIP), and nominal diameter.
Depth Stratification Breakdown: Pipe linear footage segregated by 0-6', 6-10', 10-14', and 14'+ depth brackets to align with equipment production rates and OSHA safety shoring costs.
Precast Structure Schedules: Itemized counts and depths of 48", 60", and 72" sanitary manholes, doghouse manholes, storm curb inlets, drop inlets, junction boxes, and flared end sections (FES).
Trench Volumes & Materials: Quantities for trench cut cubic yards, asphalt sawcutting linear footage, tons of #57 stone bedding, and compacted backfill volumes.
Valves, Hydrants & Appurtenances: Resilient wedge gate valves, butterfly valves, fire hydrant assemblies with auxiliary valves, air release valves, thrust blocks, and water services with curb stops.
Color-Coded Marked-Up Vector Plans: High-resolution vector PDF plans depicting utility runs with distinct colors, structure callout IDs, and stationing for easy field reference and bid reviews.

Underground Utility Takeoff Specifications & Quality Control Matrix

Takeoff Parameter	Standard Service Specification
Measurement Units	Linear Feet (LF by size/class/depth), Each (EA structures/valves/fittings), Tons (TN bedding stone), Bank/Compacted CY (trench spoil/backfill).
Drawings Reviewed	Civil Utility Plans (C300), Utility Profiles (C310–C330), Municipal Standard Details (C500), and Geotechnical Boring Logs.
Specification Alignment	CSI MasterFormat Division 33 10 00 (Water Utilities), 33 30 00 (Sanitary Sewerage), and 33 40 00 (Storm Drainage).
Revisions & Addenda	Addenda tracking: invert slope updates, pipe class revisions, and structure depth delta adjustments with line-item revision callouts.
QA/QC Review Protocol	Senior utility estimator audit verifying minimum 18" vertical crossing clearances between water and sewer mains, rim-to-invert depth math, and OSHA shoring bracket classifications.
Standard Exclusions	Interior plumbing past 5 feet from building envelope, municipal utility meter tap purchase fees, and hazardous pipe abatement (unless requested).

Five Common Utility Bidding Mistakes We Help You Avoid

1. Bidding Linear Pipe as Flat-Rate Depth: Assuming an entire sanitary sewer line is 6 feet deep when the profile shows it cuts through a ridge line at 14 feet deep will completely wipe out your job margin due to unbudgeted trench shoring boxes and deep excavator cycle times.

2. Omitting Pipe Displacement in Bedding Math: Failing to subtract the volume occupied by the pipe when calculating pipe zone backfill results in over-purchasing tens of thousands of dollars in crushed stone bedding.

3. Ignoring Geotechnical Groundwater Elevation: If soil borings show groundwater at 5 feet and your storm trench is 9 feet deep, you must budget for continuous wellpoint dewatering pumps and filter socks.

4. Overlooking Trench Sawcutting in Existing Roadways: Tying into existing municipal mains requires longitudinal asphalt sawcutting, asphalt milling, concrete cap placement, and temporary hot-mix patching that is frequently missed in takeoffs.

5. Miscalculating Structure Drop Connections: Precast sanitary manholes with internal or external drop bowls cost significantly more than standard through-flow manholes. We identify all drop structures in our schedule.
